Hudson Reed Kubix Triple Concealed Thermostatic Shower Valve With Diverter – KUB3023

Hudson Reed Kubix Triple Concealed Thermostatic Shower Valve with Diverter – Chrome – KUB3023

Kubix Triple Concealed Thermostatic Shower Valve with Divertor from Hudson Reed. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail.

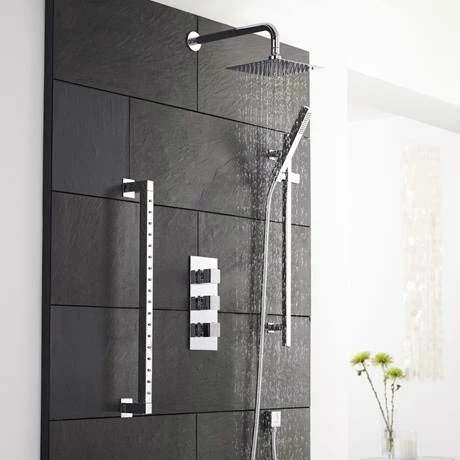

Operates two shower accessories separately or simultaneously and diverts to a third option: fixed head & slide rail kit, fixed head & body jets or slide rail kit & body jets with option to divert to free flow bath filler.

Product Details

•
  Height – 280mm
•
  Width – 120mm
•
  Depth – 137mm
•
  Pressure – MP – 0.5 Bar Minimum
•
  Range – Minimalist Square
•
  Colour/Finish – Polished Chrome
•

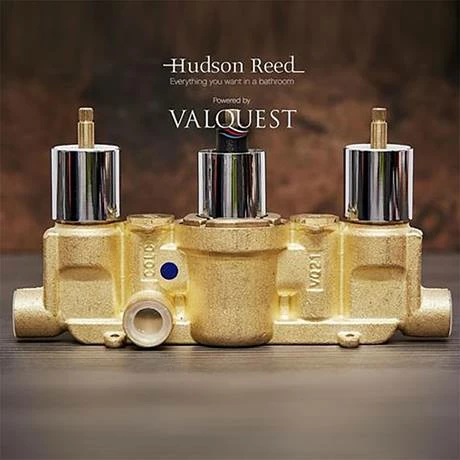

  Material – solid brass
•
  Can be fitted vertically or horizontally.
•
  Accurate flow control.
•
  Thermostatic control to +/- 2 to 3 &°C even if the water pressure fluctuates.
•
  Full thermal protection to prevent scalding in the event of hot or cold water shut off.
•
  In the event of hot or cold water failure, the valve will shut down as per the relevant standard.
•
  The patented cartridge is highly resistant to calcium build up – even in hard water areas.
•
  Our valves are suitable for use with all systems: gravity fed, pumped, unvented high pressure or fully modulated combi-boilers.
•
  Excellent flow rates – even at low pressure.
•
  The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn’t need re-plumbing.
•
  Simply remove the cartridge, turn 180 degrees and replace.

Made in Britain

Guarantee – 20 Year

Flow Rates

0.1 Bar – N/A l/m
0.5 Bar – 13 l/m
1.0 Bar – 17 l/m
2.0 Bar – 24 l/m
3.0 Bar – 27 l/m
