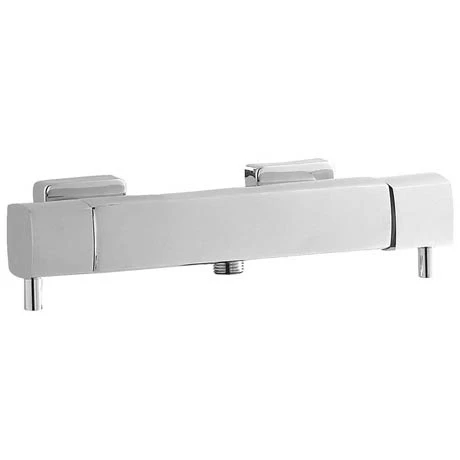

Hudson Reed Quadro Thermostatic Bar Valve (Bottom Outlet) – Chrome – A3503

Hudson Reed Quadro Thermostatic Bar Valve (Bottom Outlet) – Chrome – A3503

The minimalist Quadro Thermostatic Square Bar Valve (Bottom Outlet) from Hudson Reed is part of our contemporary collection of bathroom products. Modern styling with chrome finish and constructed from solid brass.

The handle on the left controls the water flow, whilst the handle on the right controls the temperature. Thermostatic showers prevent a fluctuation in temperature whilst the shower is running – prevents the risk of scalding, or sudden cold spells!

Product Details

• Height – 64.5mm
• Width – 291mm
• Colour/Finish – Chrome
• Material – Solid Brass
• Pressure – LP2 – 0.2 Bar Minimum
• Bottom outlet.
• Thermostatically controlled.
• Contains Valquest cartridge.
• Built-in anti-scald device.
• Suitable for combi-boilers and gravity-fed systems.
• Suitable for unvented mains pressure systems.
• Suitable for shower pumps.

Made in Britain

WRAS & TMV2 approved – ensuring it has been tested to the highest standards.

Guarantee – 20 year

Flow Rates

0.1 Bar – 5 l/m
0.5 Bar – 8 l/m
1.0 Bar – 12 l/m
2.0 Bar – 17 l/m
3.0 Bar – 18 l/m
