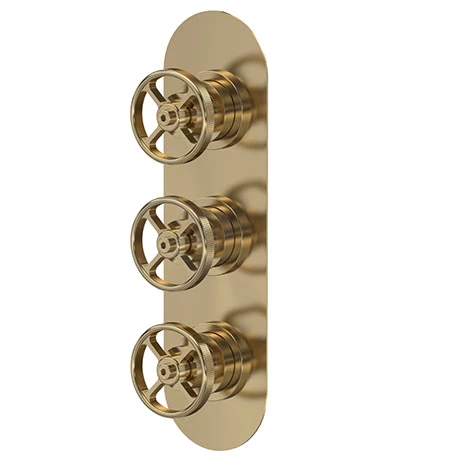

Hudson Reed Revolution Industrial Triple Concealed Thermostatic Shower Valve – Brushed Brass – SIWTR802

Hudson Reed Revolution Industrial Triple Concealed Thermostatic Shower Valve – Brushed Brass

The Hudson Reed Revolution range features an industrial design with a Brushed Brass finish. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail.

Operates two shower accessories separately or simultaneously: fixed head & slide rail kit, fixed head & body jets or slide rail kit & body jets.

Product Details

• Height: 280mm
• Width: 80mm
• Depth: 136mm
• Brand: Hudson Reed
• Colour: Brushed Brass
• Material: Brass / ABS
• Two Outlet
• Valve Handle: Round Handle
• High quality internal brassware for long life
• Suitable for use with all systems: gravity fed pumped unvented high pressure of fully modulated combi-boilers
• Accurate flow control
• Full thermostatic protection to prevent scalding in the event of hot or cold water shut off
• Excellent flow rates – even at low pressure
• Accurate flow control
• In the event of hot or cold water failure the valve will shut down as per the relevant standard
• The patented cartridge is highly resistant to calcium build up – even in hard water areas
• Pipe Size: 15 mm (1/2″ BSP)
• Approvals: WRAS, TMV2, TMV3
• Operating Pressure: 0.1 bar

Guarantee: 3 Year

Flow Rates

• 0.1 Bar – 5.5 l/m
• 0.5 Bar – 14 l/m
• 1.0 Bar – 20 l/m
• 2.0 Bar – 29 l/m
• 3.0 Bar – 44 l/m
