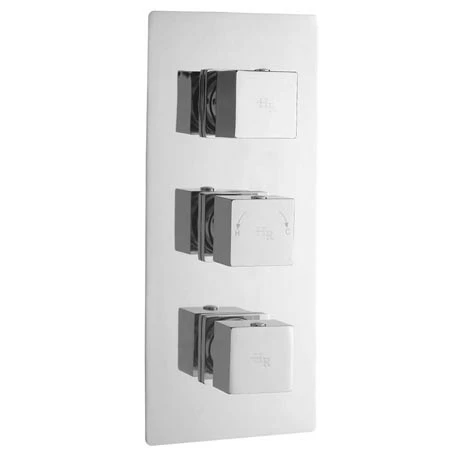

Hudson Reed Kubix Triple Concealed Thermostatic Shower Valve – A3014

Hudson Reed Kubix Triple Concealed Thermostatic Shower Valve – Chrome – A3014

Kubix Triple Concealed Thermostatic Shower Valve from Hudson Reed offers thermostatic showering via three easy to operate controls with the diverter allowing for two outlets choose from our Hudson Reed Shower Heads, Slide Rail Kits and Body jets to enhance your showering experience.

Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail.

Separate controls for temperature and flow. Operates two outlets separately or simultaneously e.g. fixed head & slide rail kit, fixed head & body jets or slide rail kit & body jets.

Product Details

• Height – 280mm
• Width – 120mm
• Depth – 134.5mm
• Range – Minimalist Square
• Colour/Finish – Polished Chrome
• Material – solid brass
• Water Pressure – LP1 – 0.1 bar pressure minimum
• Can be fitted vertically or horizontally.
• Accurate flow control.
• Thermostatic control to +/- 2 to 3 &°C even if the water pressure fluctuates.
• Full thermal protection to prevent scalding in the event of hot or cold water shut off.
• In the event of hot or cold water failure, the valve will shut down as per the relevant standard.
• The patented cartridge is highly resistant to calcium build up – even in hard water areas.
• Our valves are suitable for use with all systems: gravity fed, pumped, unvented high pressure or fully modulated combi-boilers.
• Excellent flow rates – even at low pressure.
• The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn’t need re-plumbing.
• Simply remove the cartridge, turn 180 degrees and replace.

Made in Britain and TMV2/TMV3 approved – ensuring it has been tested to the highest standards.

WRAS approved Product

Guarantee – 20 Year

Flow Rates

0.1 Bar – 5.5 l/m
0.5 Bar – 14 l/m
1.0 Bar – 20 l/m
2.0 Bar – 29 l/m
3.0 Bar – 44 l/m
