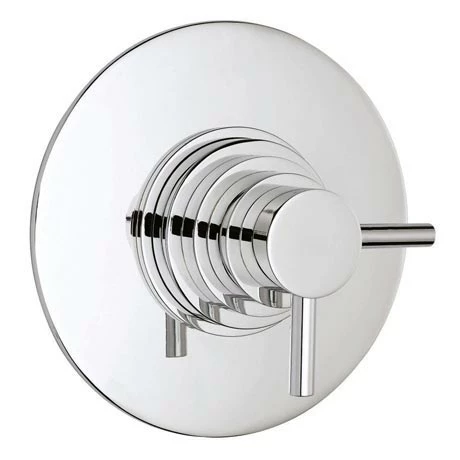

Hudson Reed Dual Concealed Thermostatic Shower Valve – Chrome – JTY025

Hudson Reed Dual Concealed Thermostatic Shower Valve – Chrome – JTY025

The Hudson Reed Dual Concealed Thermostatic Shower Valve with Round Back Plate offers thermostatic showering with two easy to operate controls, one operates flow control whilst the other allows temperature selection.

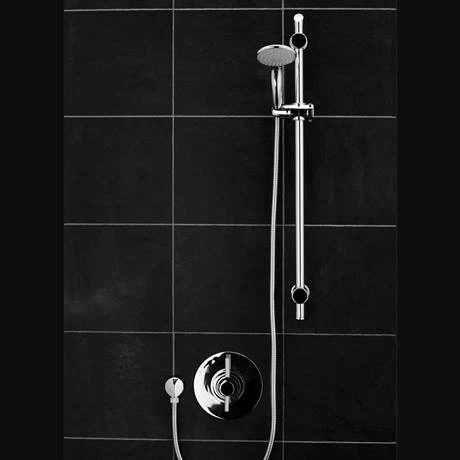

To be used with a fixed head or slide rail kit. Suitable for all types of plumbing installation this valve has the added safety benefit of a built in anti-scald device should the cold water supply fail. The Series F II Dual concealed Thermostatic Shower Valve adds a touch of sophistication and style in any bathroom.

Product Details

• Height: 185mm
• Width: 185mm
• Depth: 142mm
• Colour/Finish: Chrome
• Material: Manufactured from solid brass.
• Accurate flow control.
• Thermostatic control to +/- 2°C- even if the water pressure fluctuates.
• Full thermal protection to prevent scalding in the event of hot or cold water shut off.
• In the event of hot or cold water failure, the valve will shut down within 1.5 seconds.
• The patented cartridge is highly resistant to calcium build up – even in hard water areas.
• Our valves are suitable for use with all systems: gravity fed, pumped, unvented high pressure or fully modulated combi-boilers.
• Excellent flow rates – even at low pressure.
• Our valves can deliver 5.5 litres per minute at 0.1 bar pressure.
• The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn’t need re-plumbing.
• Simply remove the cartridge, turn 180 degrees and replace.
• 150mm between pipe inlet centres
• Water Pressure: LP1 – 0.1 bar pressure minimum
• Standards: EN200 and/or WRc/NSF


Made in Britain

TMV2 Approved

WRAS approved

20 Year Guarantee

Flow Rates

0.1 Bar – 5.5 l/m
0.5 Bar – 14.5 l/m
1.0 Bar – 22 l/m
2.0 Bar – 30 l/m
3.0 Bar – 35 l/m
